Transit Fit
Fit transit light curves for a target with the conda-based timer pipeline, then review the model fit, systematics, and posterior parameters.
Discovered Lightcurves
Select the lightcurve files to include in the fit:
Transit Fit Results — default

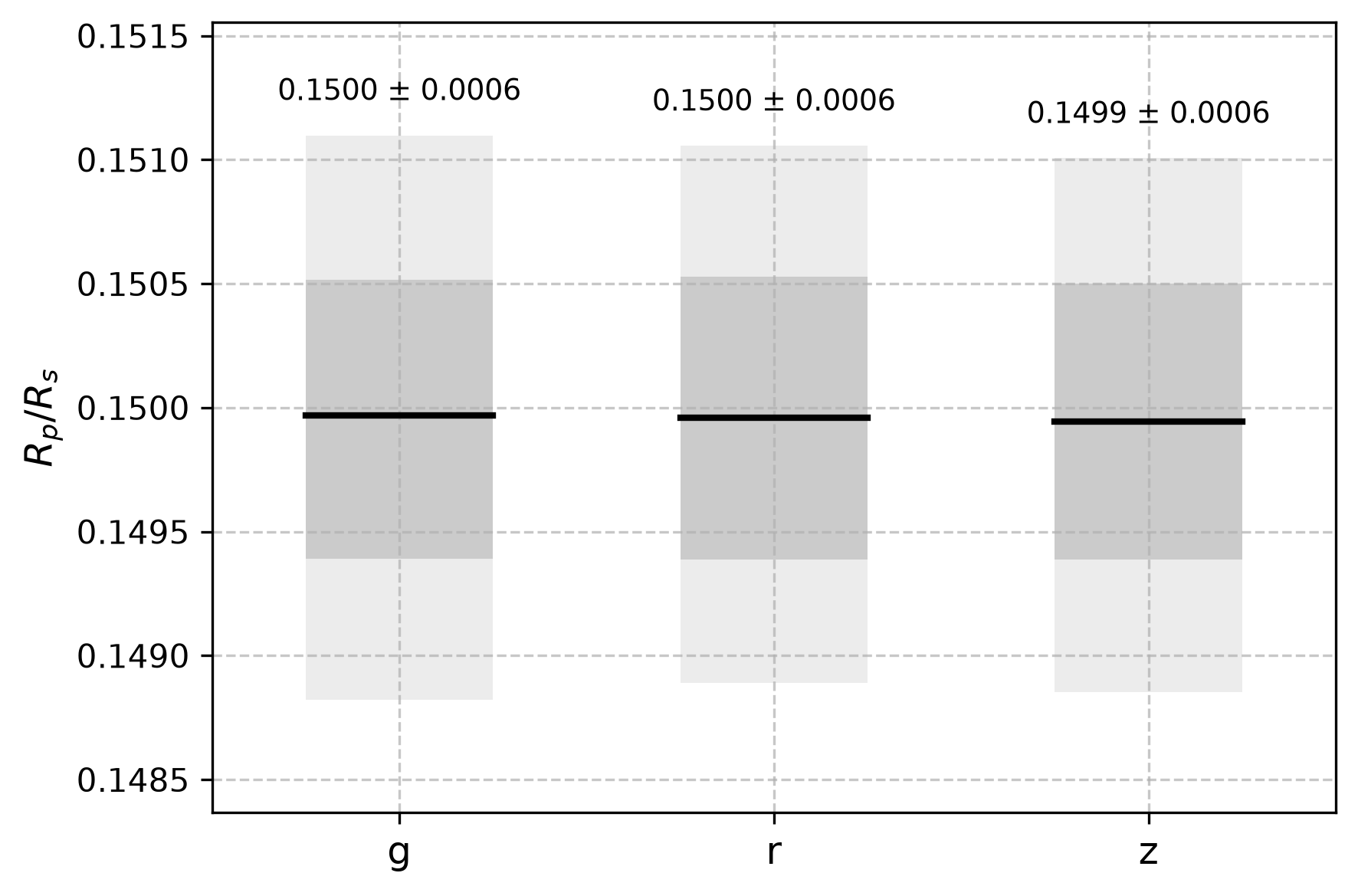

chromatic_ror (Created: 2026-07-06 16:26)

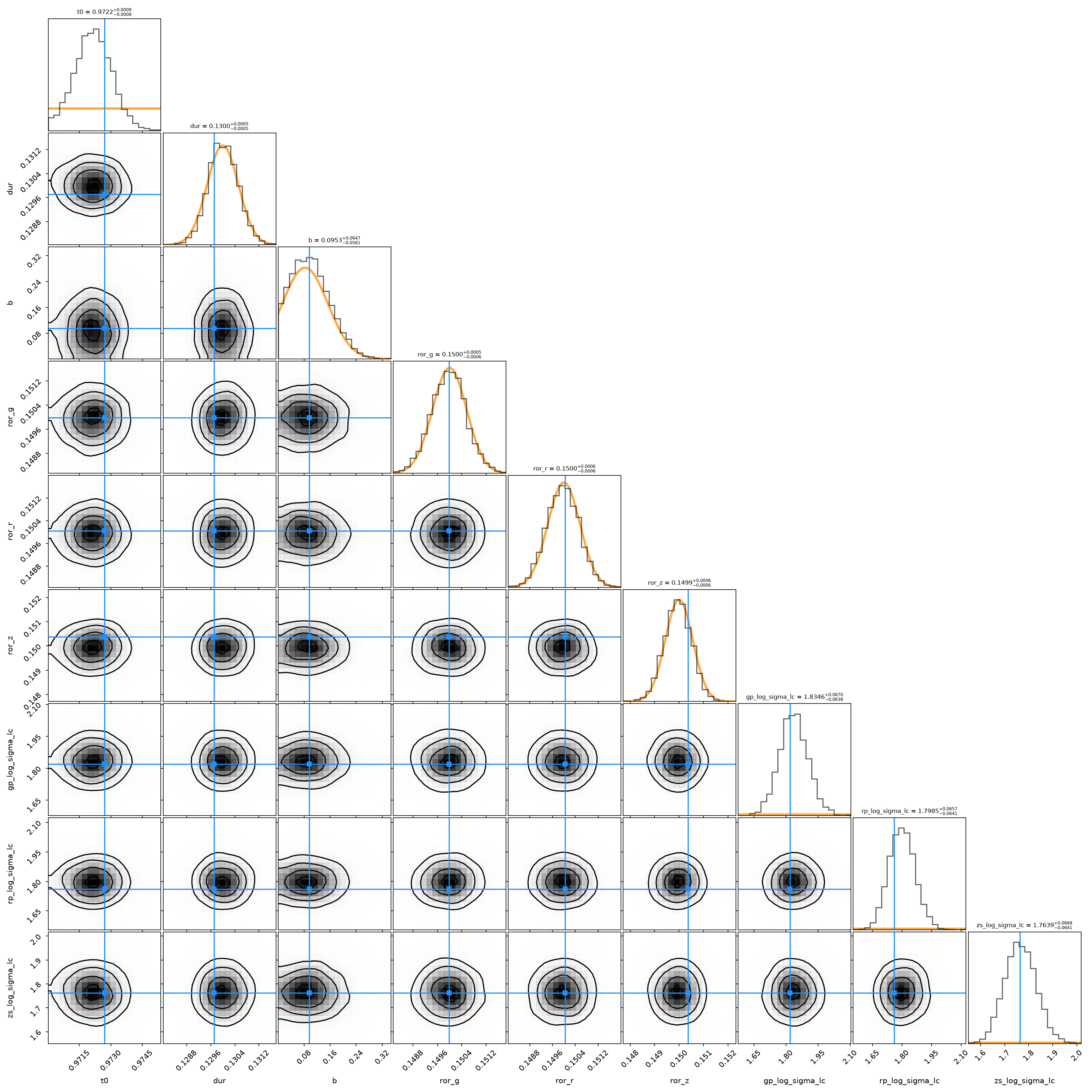

corner (Created: 2026-07-06 16:26)

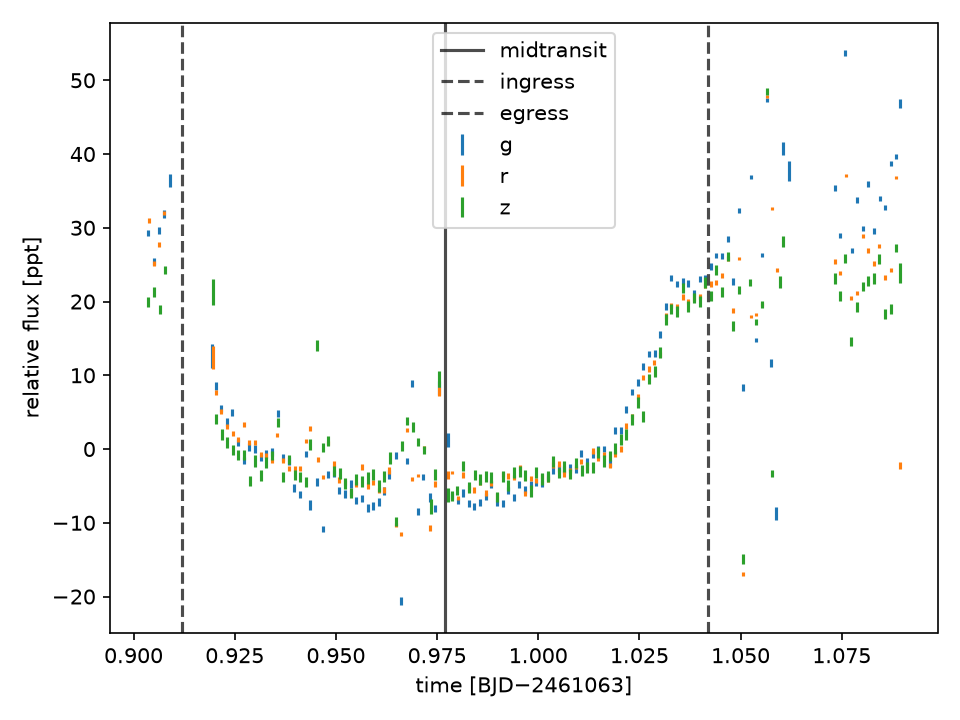

data (Created: 2026-07-06 16:23)

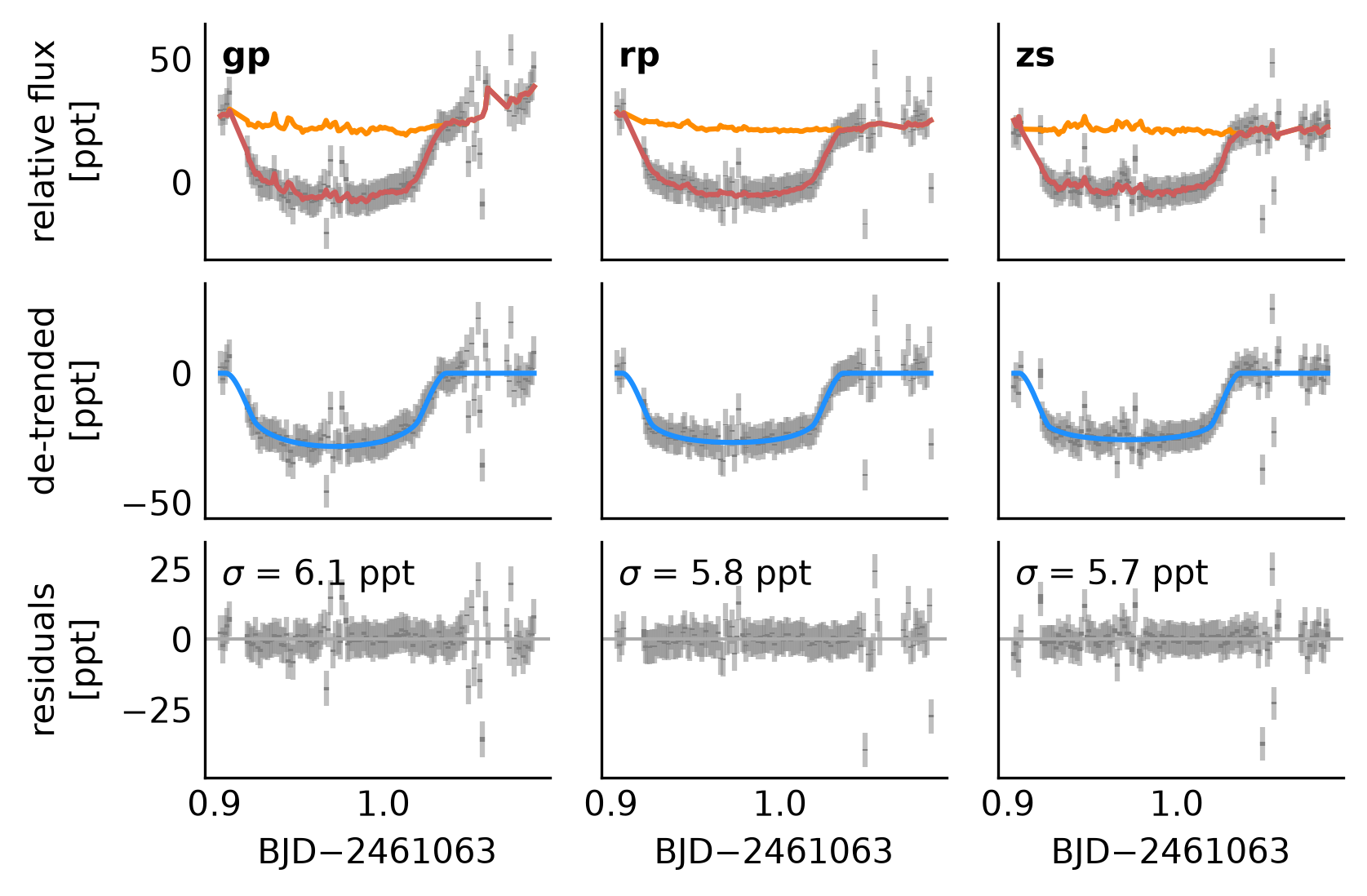

fit (Created: 2026-07-06 16:26)

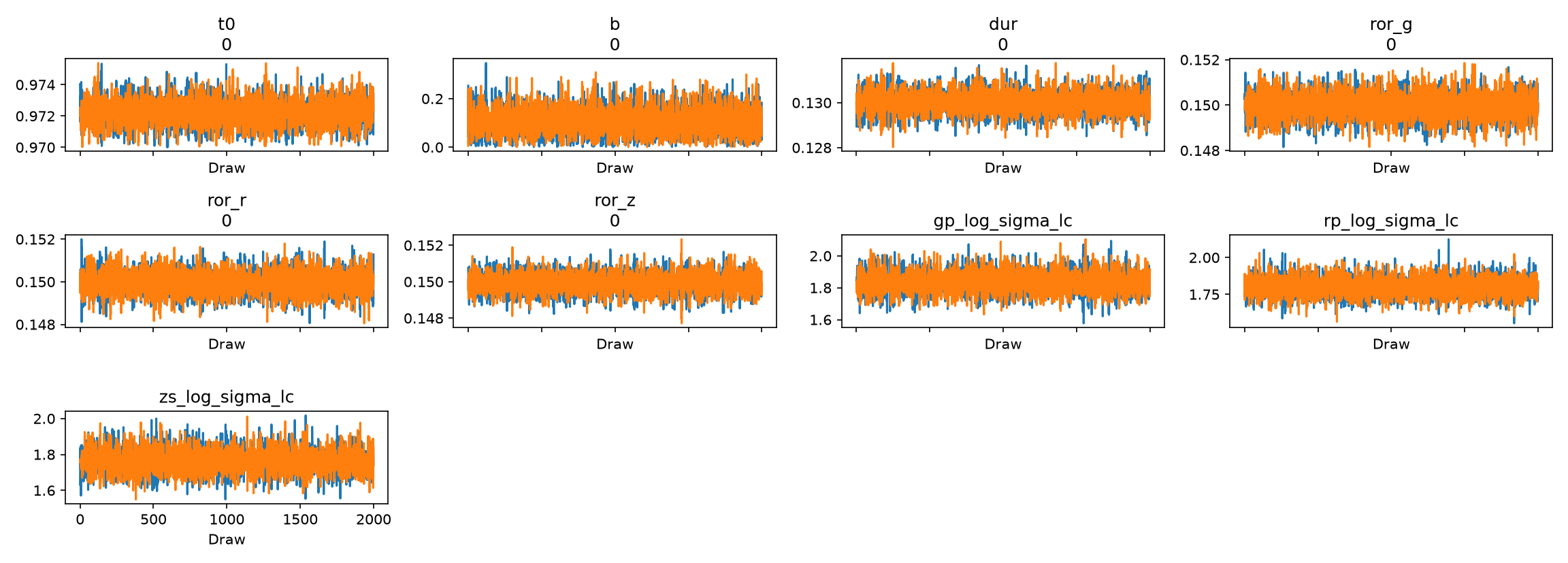

trace (Created: 2026-07-06 16:26)
Systematics Plots (3)

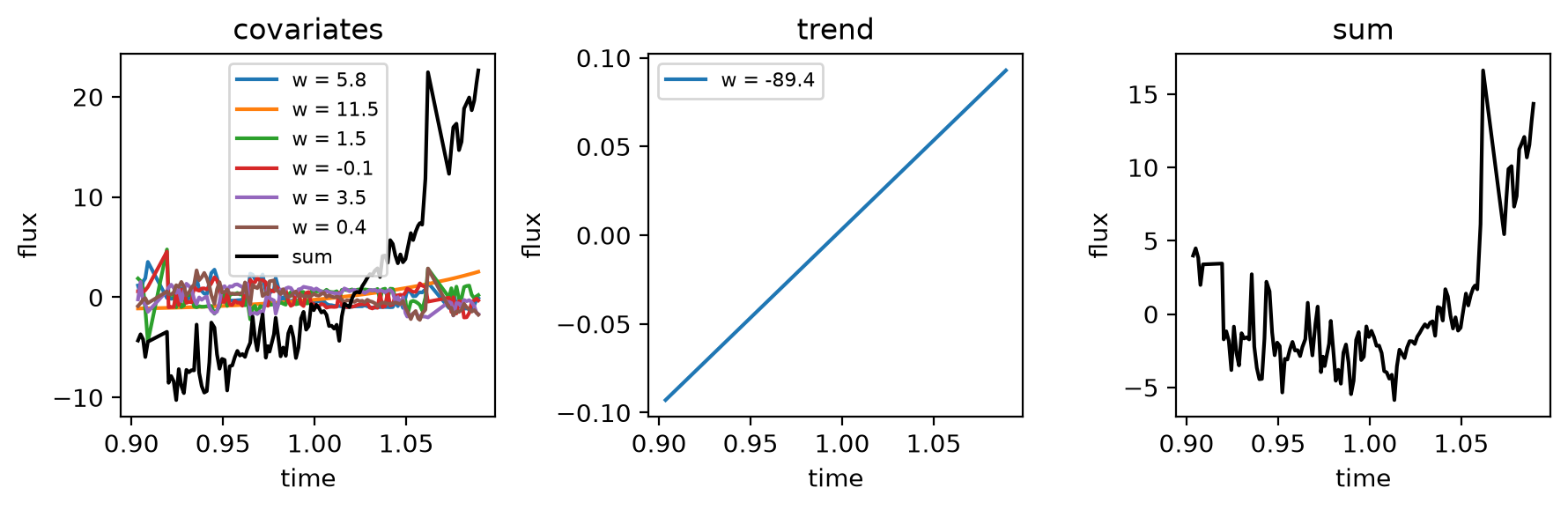

sys-gp (Created: 2026-07-06 16:26)

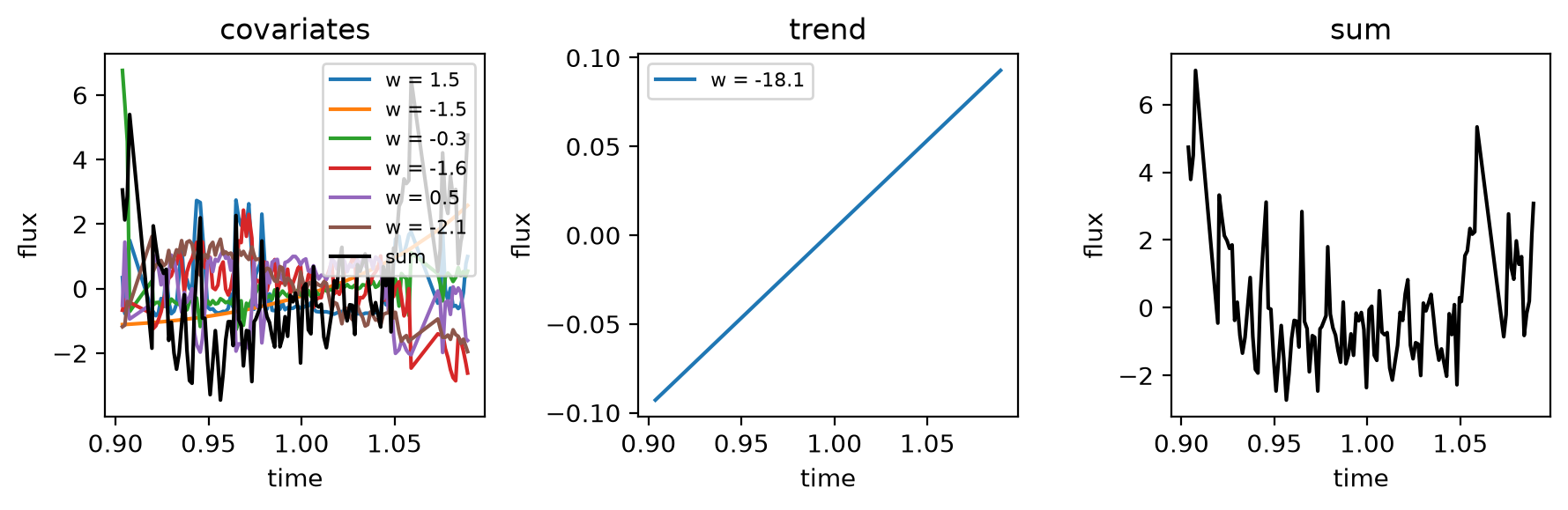

sys-rp (Created: 2026-07-06 16:26)

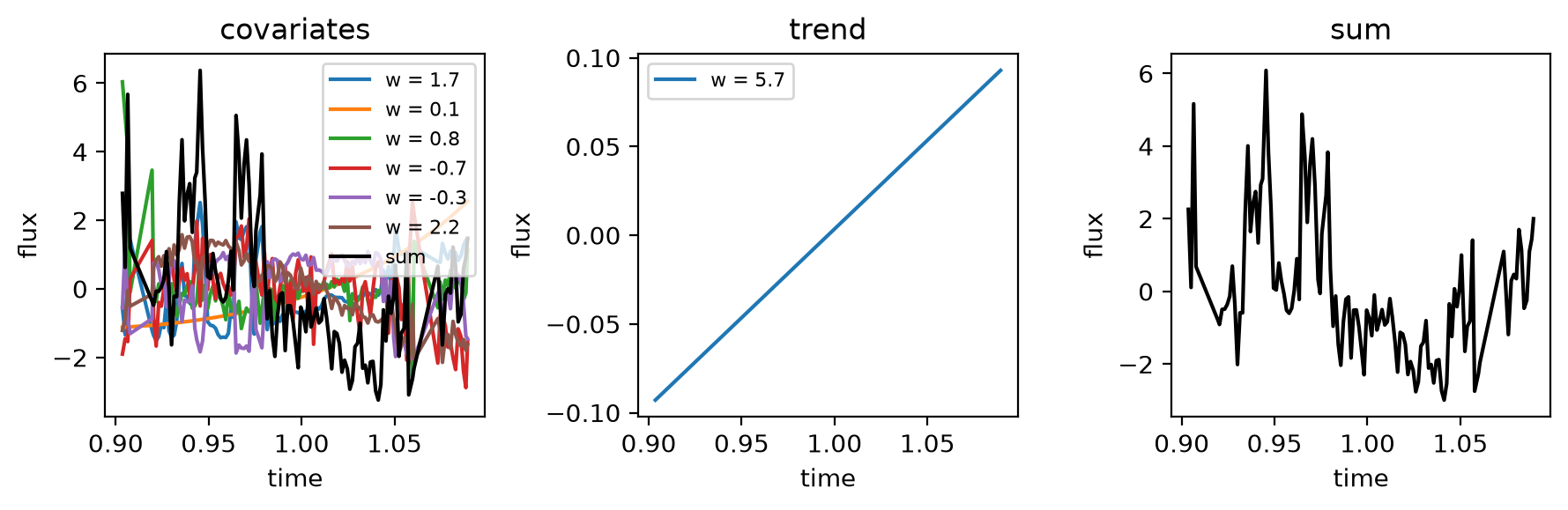

sys-zs (Created: 2026-07-06 16:26)
Fitted Parameters Summary
| parameter |
mean |
sd |
eti89_lb |
eti89_ub |
ess_bulk |
ess_tail |
r_hat |
mcse_mean |
mcse_sd |
| t0[0] |
0.97215 |
0.00088 |
0.97 |
0.97 |
3960 |
1777 |
1.00 |
1.3e-05 |
9.3e-06 |
| b[0] |
0.101 |
0.058 |
0.016 |
0.2 |
3660 |
1751 |
1.00 |
0.00086 |
0.00058 |
| dur[0] |
0.13001 |
0.000491 |
0.13 |
0.13 |
9725 |
3494 |
1.00 |
5e-06 |
3.6e-06 |
| ror_g[0] |
0.14996 |
0.000571 |
0.15 |
0.15 |
11665 |
3426 |
1.00 |
5.3e-06 |
3.7e-06 |
| ror_r[0] |
0.14996 |
0.000566 |
0.15 |
0.15 |
10213 |
3080 |
1.00 |
5.6e-06 |
3.9e-06 |
| ror_z[0] |
0.14994 |
0.000555 |
0.15 |
0.15 |
9725 |
3233 |
1.00 |
5.6e-06 |
4e-06 |
| gp_log_sigma_lc |
1.836 |
0.067 |
1.7 |
1.9 |
7155 |
3021 |
1.00 |
0.0008 |
0.00059 |
| rp_log_sigma_lc |
1.8 |
0.066 |
1.7 |
1.9 |
7103 |
3355 |
1.00 |
0.00079 |
0.00058 |
| zs_log_sigma_lc |
1.766 |
0.066 |
1.7 |
1.9 |
7445 |
3293 |
1.00 |
0.00077 |
0.00056 |
Configure & Run Transit Fitting
Fitting Configurations & Parameters
Stellar Parameters —
Planet Parameters
Sampler Options ?
Detrending Options ?
Gaussian Process (GP) ?
Bump Model ?
Flare Model ?
Fixed Parameters ?
Fitting Pipeline Options
Delete fit results
Delete fit results for HAT-P-32b (muscat/260123) — run default? This cannot be undone.
